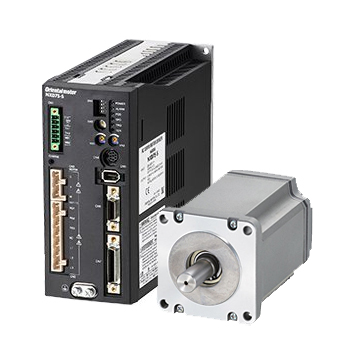

Servo Motors

Servo Motors, Drivers and Controllers

Oriental Motor offers several types of servo motor solutions; Battery Free Absolute Encoder Servo Motors, Tuning Free Servo Motor products or Hybrid Servo Motor / Stepper Motor products. Both types of solutions provide closed loop control along with many other advantages.

Our Battery Free Absolute Encoder Servo Motors are equipped with a battery-free absolute sensor. They are suitable for positioning applications with a large amount of travel, since they achieve high torque in the high speed range.

Our Tuning Free Servo Motors are traditional servo solutions where the encoder provides feedback to the driver and all motion is controlled through a Position Counter. Use of the limited duty region is available for short periods of time where more torque is required.

Our αSTEP Hybrid Servo Motor / Stepper Motors are closed loop as well and utilize a different motor technology where as they provide maximum torque throughout their entire speed torque range without the concern of operating in the limited duty region. See the speed torque comparison below for a clear comparison. Also, our αSTEP Hybrid Servo Motor / Stepper Motor driver are Network compatible.

400 W Battery Free Absolute Encoder Servo Motors
50 W up to 750 W Tuning Free Servo Motors
Hybrid Servo Motors available
Gear and Electromagnetic Brake options

Servo Motors (Motor Only)

The servo motor is specialized for high-response, high-precision positioning. As a motor capable of accurate rotation angle and speed control, it can be used for a variety of equipment.

Battery Free Absolute Encoder or Tuning Free Servo Motors and Hybrid Servo Motors / Stepper Motors
Compact and High Power
Wide Variable Speed Range
Standard or Planetary Geared Type
Electromagnetic Brake Types

Servo Motor Drivers

Servo motor drivers convert pulse signals from the controller into motor motion to achieve precise positioning.

Battery Free Absolute Encoder or Tuning Free Servo Motor Drivers and Hybrid Servo Motor / Stepper Motor Drivers
AC Input
Battery Free Absolute Encoder Servo Motor Driver utilizes pulse and direction or network communications
Tuning Free Servo Motor Drivers utilize pulse and direction
Hybrid Servo Motor / Stepper Motor Drivers utilize pulse and direction or network communications

Controllers / Network Gateways

Controllers and Network Gateways for use with motion control systems.

Controllers for use with Pulse Input Drivers
Network Converters/Gateways (RS-485 Communication)
- EtherCat
- CC-Link
- MECHATROLINK

Servo Motors

Comparison of Servo Motor Products

Type	Output Power	System	Gear	Brake	Max. Speed
Tuning Free Servo	50 W ~ 750 W	Pulse Input	Optional	Optional	5,500 r/min
Short Range Servo	30 W ~ 400 W	Stored Data (Network) or Pulse Input	Optional	Optional	4,000 r/min
