The stainless steel type brushless DC motor is rated for IP67, which indicates the level of dust and water protection class specified under the IEC 60529 and IEC 60034-5 standards. It is also rated for IP69K, which indicates the level of dust and water protection class specified under the DIN 4005-9 standard.



IP Code Definitions

	Dustproof	Waterproof
IP	6	9K

Dustproof

Grade	6	Completely dustproof construction: completely protected against dust intrusion

Watertight

Grade	7	Usable even when submerged under the following conditions: 1m below the water surface for 30 minutes
	9K	Protected against high-temperature, high-pressure, powerful water jets. High-pressure (8-10 MPa) and high-temperature (80°C) water jets from close range.

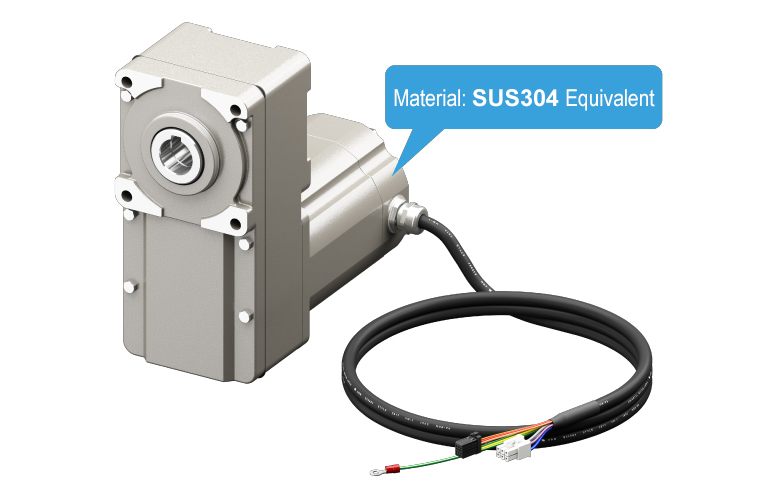

This motor is made of stainless steel equivalent to SUS304, which provides excellent corrosion resistance.  As it is not painted, the paint will not peel off.

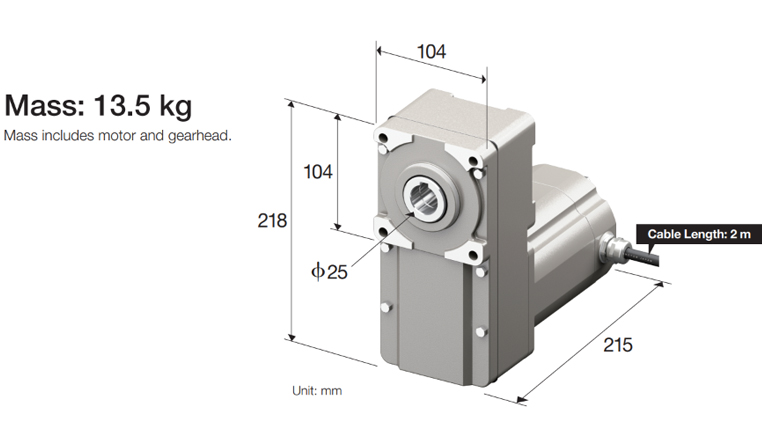

The 200 W (1/4 HP) stainless steel type brushless DC motor is smaller and more efficient compared to AC motors with the same output power.

This is a highly efficient motor with an efficiency of 80% (equivalent to IE5*). It is more efficient than stainless steel AC motors equivalent to IE3, which reduces running costs. In addition, because it is highly efficient, it generates less heat.

*The "IE5 efficiency standard" is 76.2%. This is the efficiency standard (%) for variable speed motors (rated speed 1801-6000 r/min) based on IEC TS 60034-30-2.

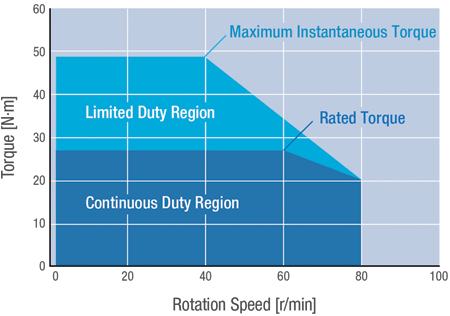

The expected performance of the 200 W (1/4 HP) stainless steel type brushless DC motor with a 50:1 gearhead is depicted by the speed-torque curve below.

Example Gear Ratio: Characteristics diagram for 50

      BL2M6200CCS-50FR

Continuous Duty Region: Continuous operation is possible in this region.
Limited Duty Region: This region is used primarily when accelerating.
