Solutions > Product Customization

Custom Orders

What is customization of Oriental Motor products (custom orders)?

Oriental Motor can design a custom motor tailored to your application requirements. We offer customization for shafts, windings, cables, and more. Here are some examples of our customization options. If you have other customization requests, don’t hesitate to reach out to us.

PKP Stepper Motors
AZ Hybrid Step-Servo Motors

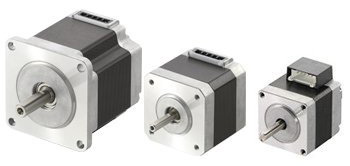

PKP Series 2-Phase Bipolar Stepper Motors

High-torque, 2-phase bipolar stepper motors and geared type stepper motors offer the optimum performance and value. In addition to offering high torque, the PKP series stepper motors offer more variety of electrical specifications, more frame sizes, encoder options and electromagnetic brake options for the right solution in stepper motors.

Example of Customization

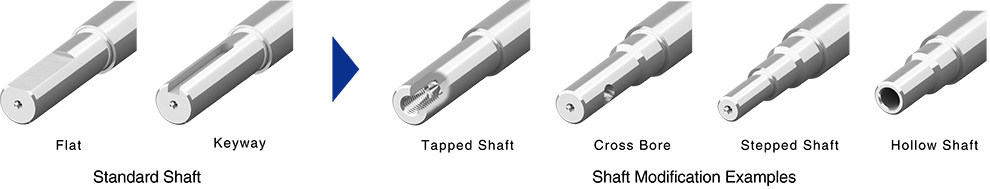

Shaft Modification

It is possible to change the shaft shape to suit what is attached to the tip of the shaft.

Custom Shaft Modifications

Motor Winding

With stepper motors, the number of windings and wire diameter specifications can be changed to match the torque-speed characteristics to the required specifications.

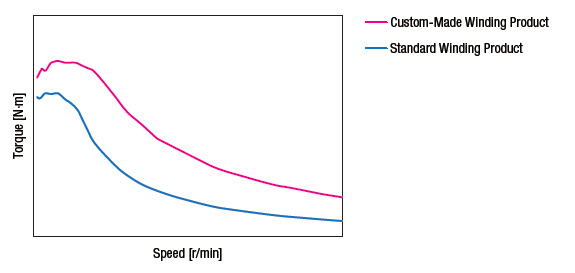

Example: Changes to winding specifications to ensure torque at high speeds.

Customized Motor Windings

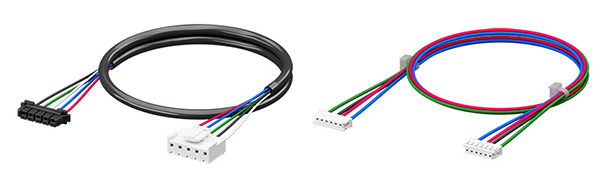

Cable Assembly

We can process motor lead wires and cables to suit the design and manufacturing circumstances of your equipment.

Example: Length / Twisted Pairs / Connectors / Label / Marking Tie
Example of Connectors: Molex / Hirose / JST / TE

Custom Cable Assemblies

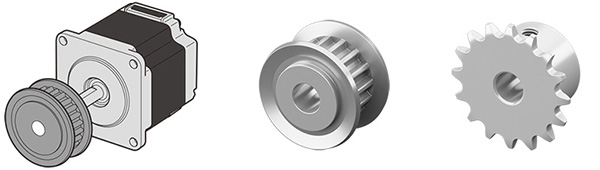

Pulley / Gears / Sprocket Installation

We can install pulley, gears, or sprocket to our stepper motor shaft.

Example: SDP / Gates Unitta / Inhouse

Pulleys, Gears, Sprockets

Encoder Assembly

We can assemble Oriental Motor encoders or third party encoders to our stepper motors.

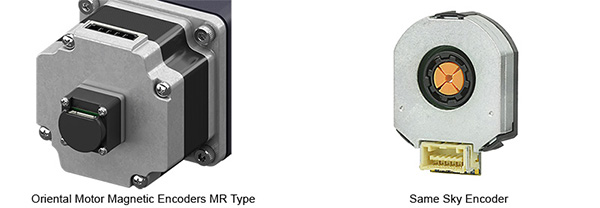

Example: Oriental Motor Magnetic Encoders MR Type or 3rd party encoders such as Same Sky

Encoder Resolution

Our standard type encoder resolution is available in 200, 400, and 1,000. With this semi-custom order, we have the resolutions ranging from 100 to 4,000 P/R.

Output Type: Incremental
Resolution (P/R): 100/200/360/400/500/600/720/800/1000/1800/2000/2500/3600/4000

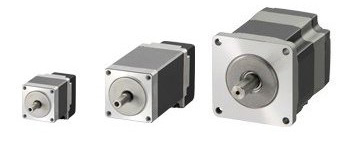

AZ Series Stepper Motors with Mechanical Absolute Encoder

The αSTEP AZ Series stepper motors offer high efficiency, low vibration, and incorporate our newly developed Mechanical Absolute Encoder for absolute-type positioning without battery back-up or external sensors to buy. Closed loop performance without hunting or gain tuning. Available with a built-in controller or pulse input driver, which substantially reduces heat generation from the motor through the use of high-efficiency technology. Requires αSTEP AZ Series Stepper Motor Driver.
