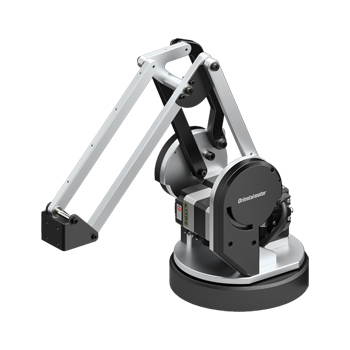

Industrial Training Robot MSER-V
Industrial Training Robot MSER-V
This industrial training product is designed to facilitate learning of industrial robot concepts from both mechanical and software perspectives and is intended for use in industrial environments, including industrial training simulators; therefore, it is outside the scope of ANSI/CAN/UL 3300.
- 3-axis small tabletop robot to start teaching and learning robotics
- Structural learning and easy programming using command icons
- Installation area ϕ16 cm, body mass 4.2 kg
- Maximum reach (horizontal) 390 mm*, payload 1 kg, repetitive positioning accuracy ±0.1 mm
*Arm lengths are customizable
Robot Lineup
Articulated Robots |
Number of Axes |
Maximum Reach (Vertical/Horizontal) |
Transportation Mass |
Power Input |
|---|---|---|---|---|
|
3-Axis |
352/390 mm |
1 kg |
24 VDC |
3-Axis Small Tabletop Robot Arm Enables Learning Mechanical and Software Aspects
The Industrial Training Robot features an open-structure design that allows users to study robotic arm mechanisms. Its intuitive, no-code programming environment uses command icons to help users create desired motions quickly. Compact and lightweight, the robot is ideal for education, research, and the development of robotic technologies and applications.
- Rather than running a simulator, training is hands-on through operating actual equipment allowing for deeper, interactive learning of machine elements and design
- Industrial robots require a significant investment, which can make deploying multiple units impractical. Our training robot provides a cost-effective solution for hands-on workforce training.

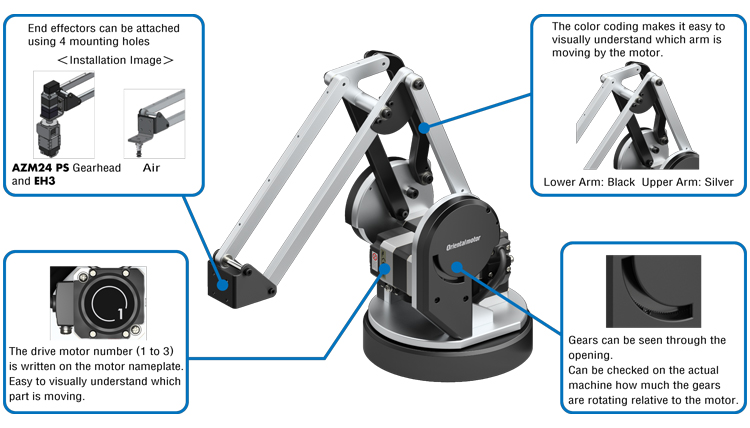

Robot Structures Useful for Teaching, Learning, and Research
- Installation area ϕ16 cm, body mass 4.2 kg
- Maximum reach (horizontal) 390 mm*, payload 1 kg, repetitive positioning accuracy ±0.1 mm
*Arm lengths are customizable.
Note: The motor of each axis is not equipped with an electromagnetic brake.
When the power is turned off, the output shaft becomes non-excited and loses its holding force. Please handle with care.

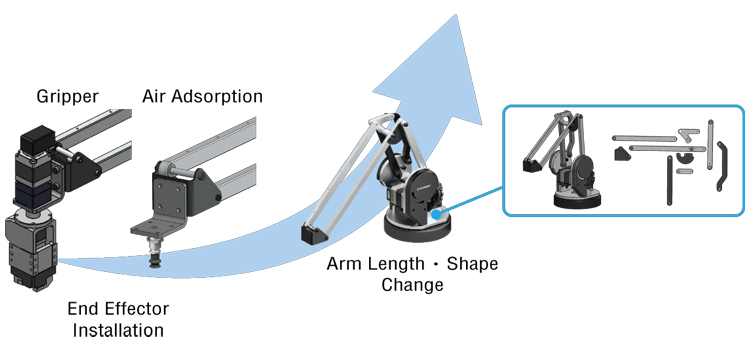

Robot Arms Can Be Replaced or Customized and End Effectors Can Be Rearranged
Arm parts can be replaced. The movable range can be expanded by customizing the length and shape of the arm. The end effector can be easily attached, allowing the user to create an original robot by reassembling a wide variety of parts.

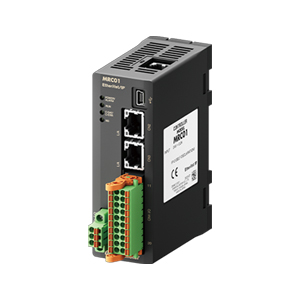

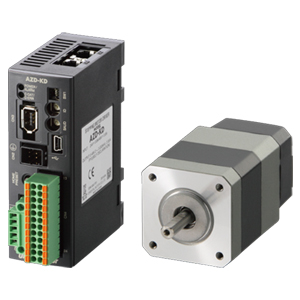

Uses Industrial Motor, Driver and Controller
Uses industrial motor, driver and controller to deliver high reliability and stable operation, even as educational material.

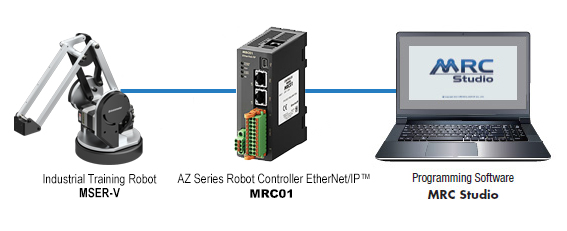

Easy Programming Even for Beginners
The "Programming Software MRC Studio" has been prepared to simplify setting up custom-built robots from the initial setting step to the operation programming step. A trial version of the programming software is also available to allow customers the chance to experience the operation of the MRCU before purchase.

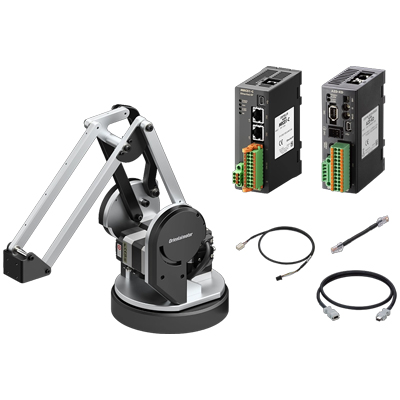

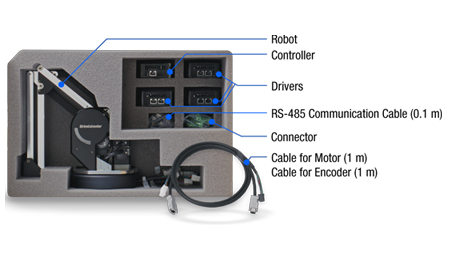

Industrial Training Robot is Available as a Set

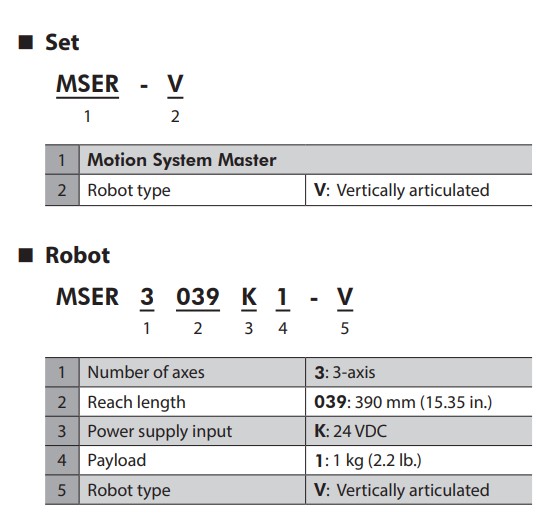

The Industrial Training Robot is available as set product name MSER-V.
- Set Product Name: MSER-V
- Robots can also be purchased individually. MSE3039K1-V
- Additionally, DC power supply and end effector are required.
