Example of Chain Conveyor Motor Downsizing and Weight Reduction

Issue: Reducing the size and weight of the motor section while maintaining the same torque

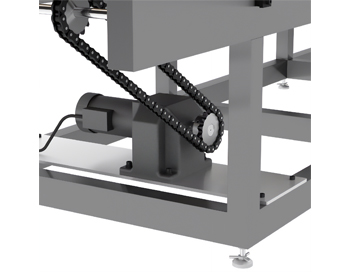

A three-phase induction motor with an output power of 0.4 kW is coupled to a chain and sprocket mechanism to drive the motor (an inverter is used for speed control)

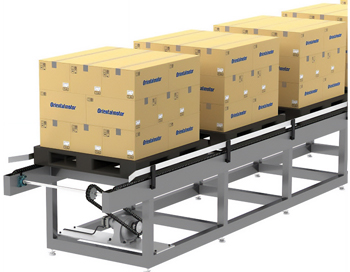

Application: Transportation of Heavy Objects

Challenge:

• The motor itself is large and heavy, making assembly to the conveyor a difficult task
  (I want to reduce the weight, but cannot compromise on motor output or torque due to the purpose of the equipment)

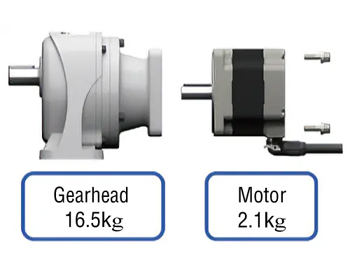

• The motor and gearhead are integrated into a single unit, which makes the motor heavy and requires a certain amount of manpower for maintenance

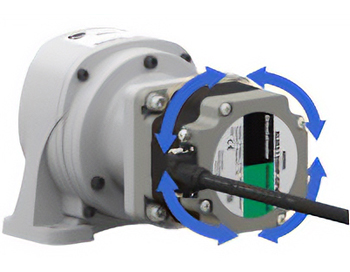

Solution: Brushless Motor BMU Series with JB gearhead (foot mount gearhead) for downsizing and reduction of weight while maintaining the same speed and torque

The BMU Series of compact, high power brushless motors will enable the motors to be significantly smaller and lighter.

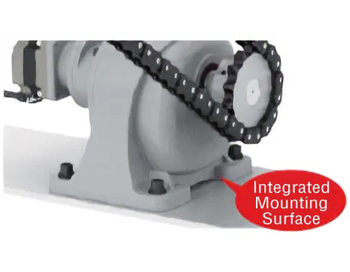

Even chain conveyors for the transportation of heavy loads can be driven with the same torque as conventional conveyors by using JB gearheads with high strength and high permissible torque.
