Automating Grease Application With the Small Robots OVR

Issue: Manual Labor Does Not Improve Productivity and Quality is Difficult to Stabilize

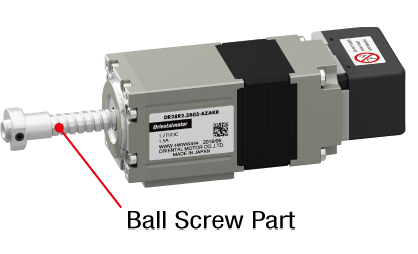

The assembly process for Oriental Motor compact electric cylinders begins with applying grease to the ball screws.
However, since this process was done manually, it required human skill in terms of the amount or position to be applied, etc.
As a result, only certain personnel could work, creating a bottleneck in improving productivity.

Challenge:

The amount of grease application or the position to apply it, etc. requires human skill
Only certain personnel could work, which does not improve productivity
Added and wiped off occurs, because the amount of application is not constant

Solution: Automated Grease Application Using Small Robot Arm

Manufacture and install a grease application equipment using Small Robots OVR 4-axis articulated robot, and robot controller MRC01
Achieved a constant application amount by mechanizing the grease application that was done manually
The process of applying grease to the ball screw mechanized using the hollow rotary actuator DGII Series, the electric linear slide EZS Series for clean room use

Equipment

Grease application equipment

Application

Applying grease to the ball screw

Adopted Products

Small Robots OVR 4-axis articulated robot
Robot controller MRC01
Hollow rotary actuator DGII Series
Electric linear slide EZS Series for clean room use

Equipment Speciications

Dimensions (mm)	W 800 × D 1200 × H 1600
Cycle Time	Less than 100 sec.
Main Power Supply	100 VAC
Target Load	Length: 67~181 mm Diameter: 4~14 mm

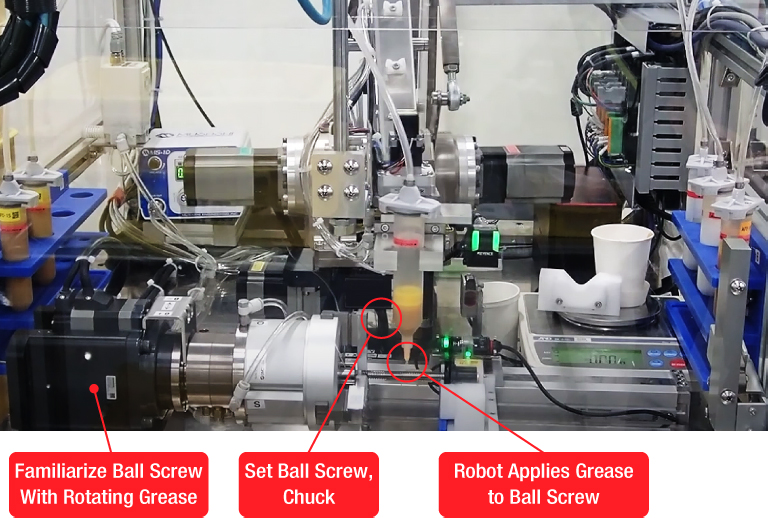

Robot Applies Grease Ball Screw

Key Adoption Points

Space Saving

Since different products use different grease, the facility requires space to install multiple dispensers. For this reason, considered the articulated robot rather than cartesian axis such as linear slide/cylinders. The Small Robots OVR 4-axis articulated robot decided key points for using because it has space saving footprint of 130 mm × 130 mm and thus can secure a large work space, and is inexpensive. This allows multi-product production can be enabling dispenser auto-change (setup) because multiple dispensers to be installed in a small space within the facility.

Easy Programming

In terms of control, creating a ladder program is usually difficult and requires a high level of skill when controlling multiple axes of the motor with a PLC.
Therefore, decided to also adopt the MRC01 robot controller, which makes programming easy.

No ladder knowledge required. Program operates by selecting items.

Reducing the Burden and Time for Start-up

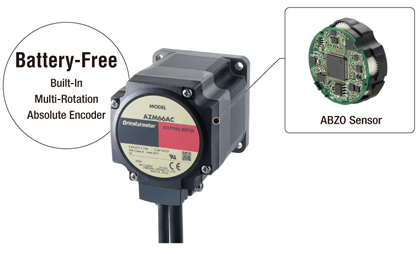

Reducing Time for Start-up AZ built-in absolute encoder

Actuators equipped with the AZ series built-in battery-free absolute encoder was used for rotational drive and linear drive around the robot. Because the motor is same as the AZ series, the wiring and control can be unified, and burden and time for start-up have been reduced.

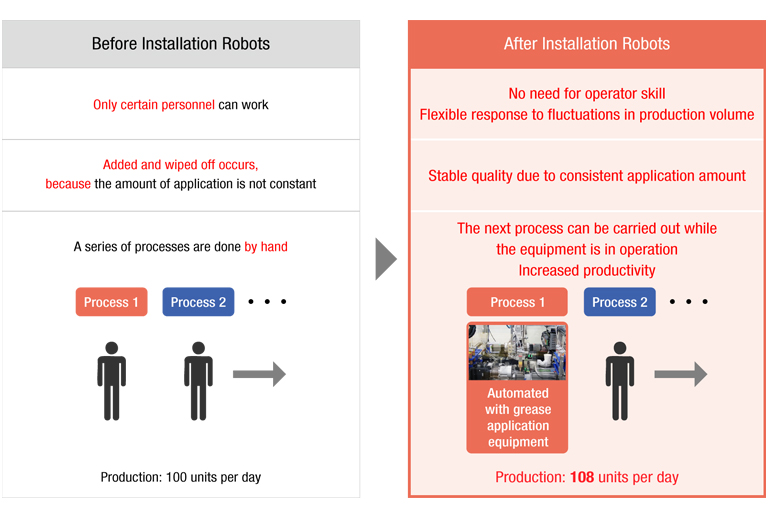

Introduction Effect
