PKP Series Stepper Motor and Supporting Products

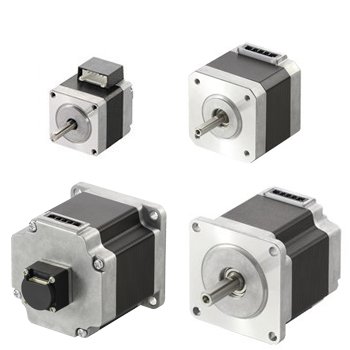

PKP Series Stepper Motor

The PKP Series stepper motor offers high torque, low vibration, and design flexibility with options like gearheads, encoders, brakes, and customization.It supports compact, reliable motion solutions across industrial applications, including automation and robotics.Complemented by drivers and accessories, it enables tailored, efficient systems for diverse needs.

Explore 2-phase Stepper Motors

Explore 5-phase Stepper Motors

Why Choose PKP Series?

More Options. More Design Flexibility.

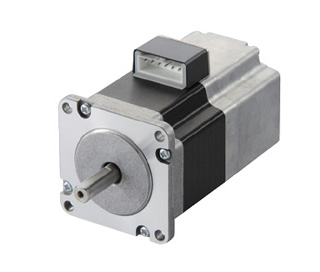

Electromagnetic Brake

Equipped with built-in power-off electromagnetic brakes, these products safely hold loads in place during power interruptions and at standstill. This allows motor current to be switched off, helping minimize motor heat generation.

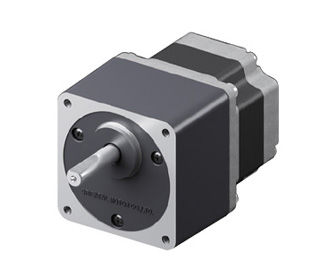

Multiple Gear Options

Multiple Gear Options Spur, planetary, and harmonic gearheads are available to accommodate a broad range of motion control applications. These gear options help optimize torque, speed, and inertia matching while delivering the performance and flexibility needed for demanding operating conditions.

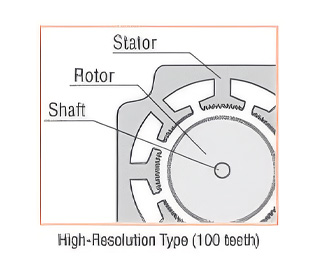

High-Resolution Type

Automation With twice the number of rotor teeth compared to a standard stepper motor, this design delivers a finer 0.9° step angle for improved positioning resolution, smoother motion, and enhanced control accuracy.

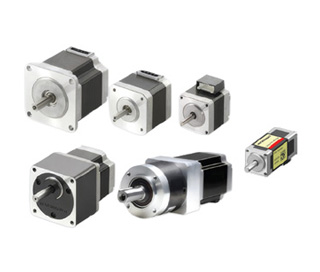

13-85 mm / NEMA 5-35 Frame Size

13-85 mm Frame Size With frame sizes spanning 13-85 mm / NEMA 5 through NEMA 35, this lineup offers exceptional design flexibility, enabling compact machine designs while also supporting demanding high-torque applications.

Motion Control
Linear Motion
Position Feedback
Customization Service

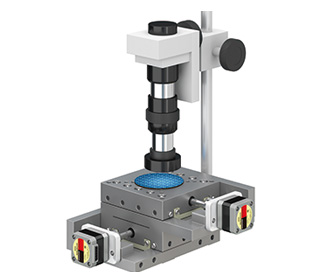

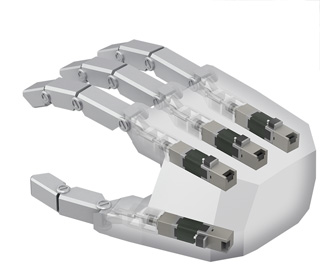

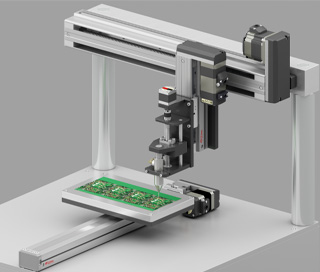

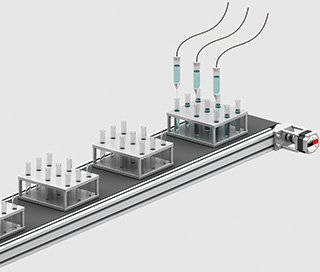

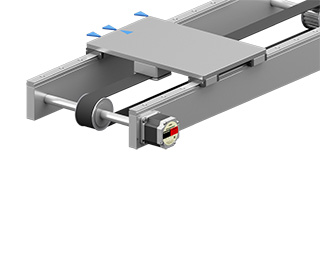

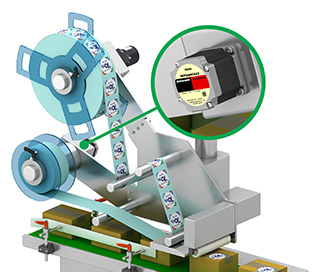

Applications

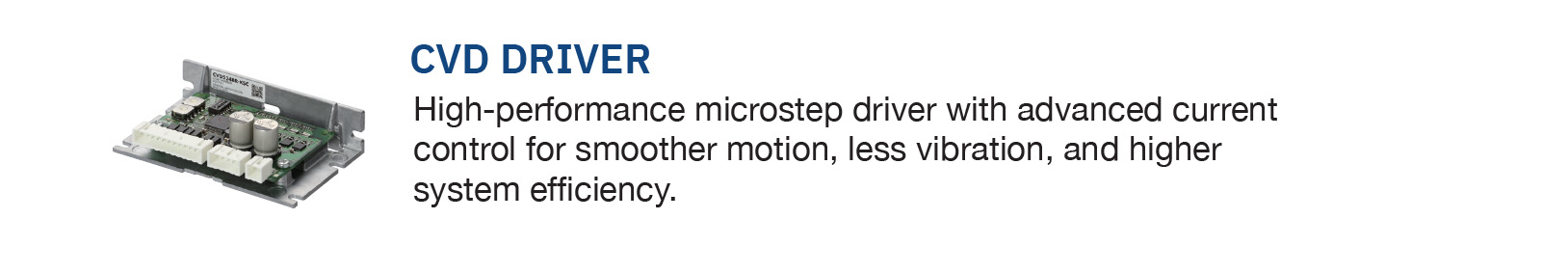

Motion Control - CVD Driver

Advanced Driver Technology for Smooth Motion Control

The CVD Series Driver delivers smooth, reliable operation with advanced current control, helping maximize the performance of the PKP Series. Designed for easy integration, it provides simplified setup, reduced vibration, and stable motion across a wide range of applications.

CVD Driver

Benefits

High-performance current control
Smooth, low-vibration operation
Easy parameter configuration
Compact footprint

Explore 2-phase Stepper Motor Drivers

Explore 5-phase Stepper Motor Drivers

Compact Design

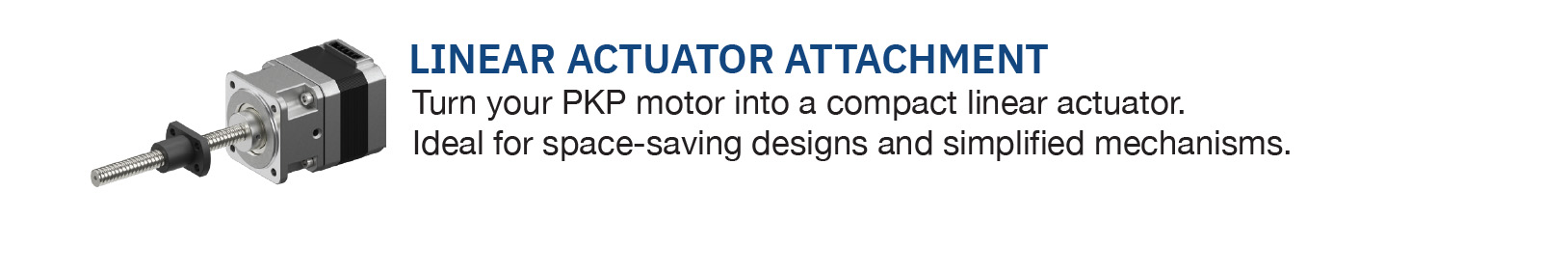

Linear Motion - Linear Actuator Attachment

Convert Rotary Motion into Precision Linear Motion

Transform the PKP Series into a compact linear actuator without redesigning your machine. The linear actuator attachment provides an easy way to achieve accurate linear positioning while reducing system complexity.

Linear Actuator Attachment

Benefits

Compact linear motion solution
Simple installation
Multiple stroke lengths
Space-saving design
High positioning accuracy

Explore Linear Actuator Attachment Options

Wide Variety of Motors and Drivers to Provide More Reliable Motion

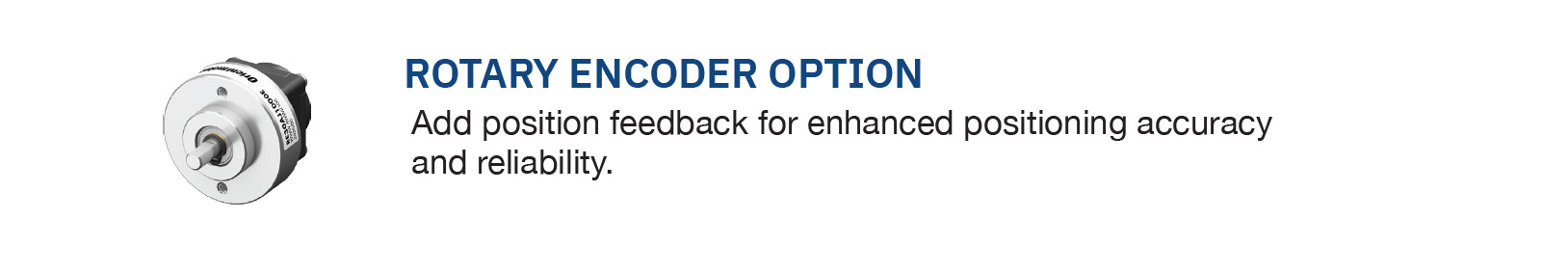

Position Feedback - Rotary Encoder

Add Position Feedback with Rotary Encoder Options

Encoder options provide position feedback for applications requiring increased system monitoring and closed-loop verification while maintaining the simplicity of a stepper motor system.

Rotary Encoder Option

Benefits

Position feedback
Improved positioning confidence
Detect missed steps
Enhanced system reliability

Explore Encoder Options

Customize the PKP Series Stepper Motor for Your Application

Need something beyond standard products? Oriental Motor offers a variety of customization services to help integrate the PKP Series into your equipment.

Customize the PKP Series Stepper Motor for Your Application

Examples

Shaft modifications
Lead wire changes
Gear and sprocket installation

Discover Oriental Motor's Customization Service

We're Here to Help!

Have a unique design challenge? Contact us today to learn how our customization services can help optimize the PKP Series for your specific equipment and application. Request a consultation and discover what's possible.
