CVD Multi-Axis Bipolar Microstepping Stepper Motor Drivers

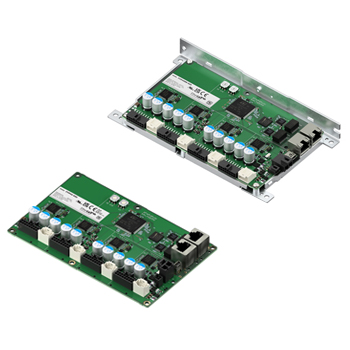

CVD Multi-Axis Type EtherCAT Compatible Stepper Motor Drivers

These compact, lightweight 2-axis and 4-axis control CVD drivers reduce wiring and save valuable space. The Multi-Axis Type CVD Series stepper motor drivers offer:

Wiring for communication, power supply, etc., for the 2-axis or 4-axis, are integrated into a single-driver
Can be used with 2-phase/5-phase stepper motors
EtherCAT communication enables synchronous operation
Automatically controls electromagnetic brakes using data acquired from integrated encoders, which can reduce host controller costs and program creation time
2 connector options (straight or right-angle) and 2 mounting options (with or without mounting plate)
Alarms
24 VDC Input / 0.3 ~ 2.8 A/Phase

Driver Lineup

Item	Driver	Number of Axes	Power Supply	Control Power Supply
CVD2A-KED	Board Type	2-axis	24 VDC	24 VDC ± 5%
CVD2AB-KED	Board Type with Mounting Plate	2-axis	24 VDC	24 VDC ± 5%
CVD2ABR-KED	Board Type with Mounting Plate (Right-Angle Type)	2-axis	24 VDC	24 VDC ± 5%
CVD4A-KED	Board Type	4-axis	24 VDC	24 VDC ± 5%
CVD4AB-KED	Board Type with Mounting Plate	4-axis	24 VDC	24 VDC ± 5%
CVD4A-KED	Board Type	4-axis	24 VDC	24 VDC ± 5%
CVD4AR-KED	Board Type - Right Angle Connectors	4-axis	24 VDC	24 VDC ± 5%
CVD4ABR-KED	Board Type - Right Angle Connectors with Mounting Plate	4-axis	24 VDC	24 VDC ± 5%

Expand

Product Features
Motors & Accessories

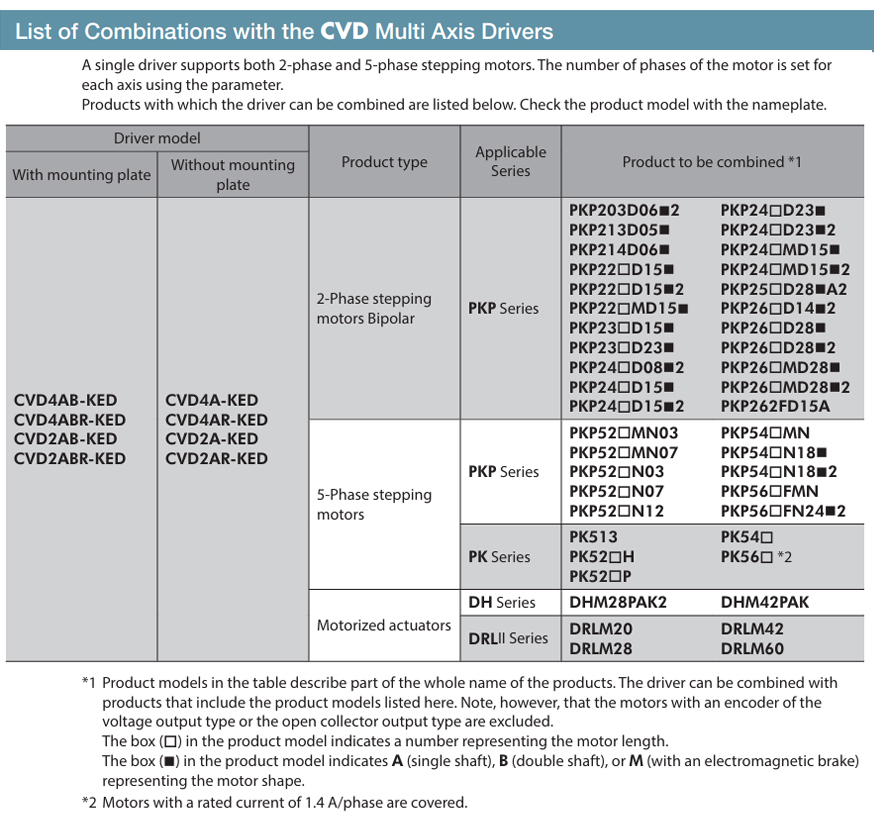

Applicable Motors

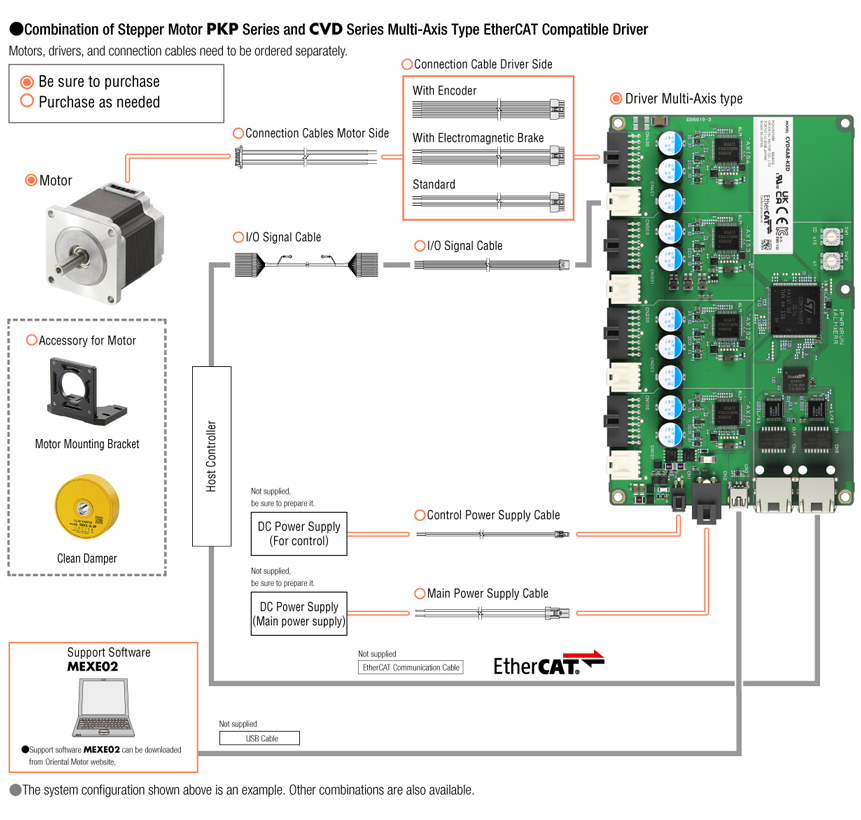

System

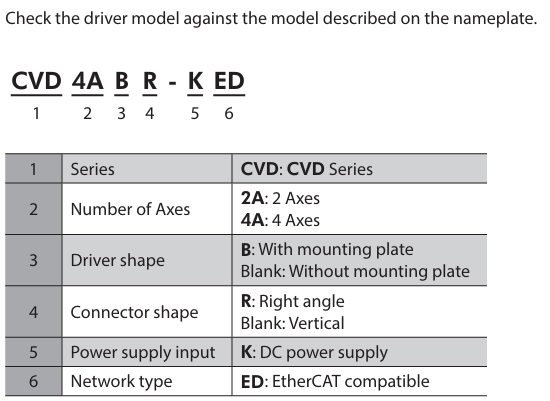

Part Number Code
Downloads & Reference

Multi-Axis Control
Support Software

EtherCAT Compatible/4-Axis Control Reduces Wiring and Saves Space

I/O signals are consolidated into a single EtherCAT communication cable. Wiring for communication, power supply, etc. for 4-axis are integrated into a single driver
Reduces work hours for wiring and decreases problems from mis-wiring
Integrated management of device information including motor information by using an EtherCAT master

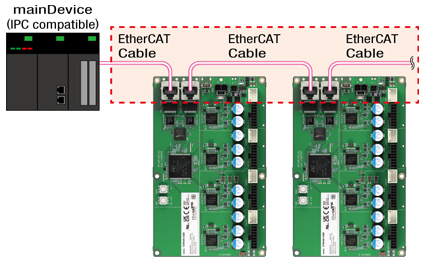

Daisy Chain Connection Reduces Wiring

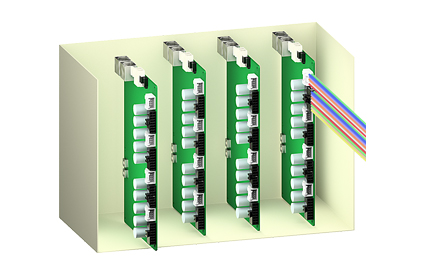

Space-Saving Installation

The right-angle connector direction type allows for more space-saving installation without the interference of wires, even when multiple units are placed side by side.

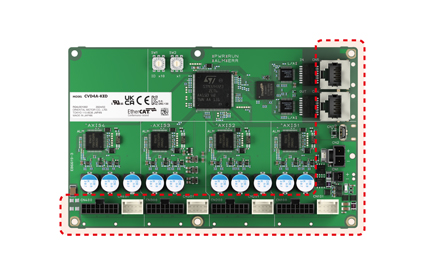

Simple Wiring

Connector positions are concentrated on 2 sides. Wiring can be simplified and organized.

Driver Cover (Sold separately)

Compatible Driver: With mounting plate

Cover to prevent foreign objects from falling onto the driver
Complies with degree of protection IP20

PADC-CVD4ARED

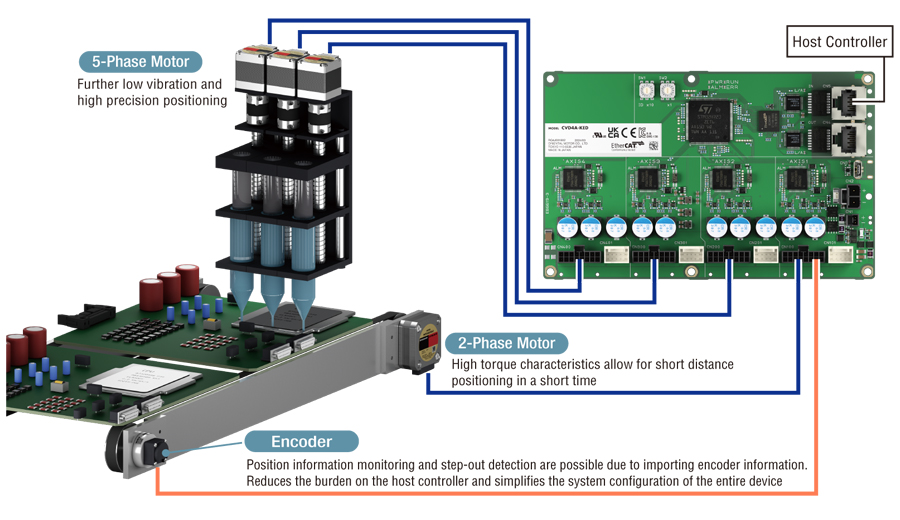

Combined Use of 2-Phase/5-Phase Motors and Synchronous Control is Possible Using EtherCAT Communication

A single driver can control 2-phase/5-phase motors and actuators, which reduces parts inventory and management costs
Synchronous control is possible while utilizing the different characteristics of 2-phase/5-phase motors via EtherCAT communication

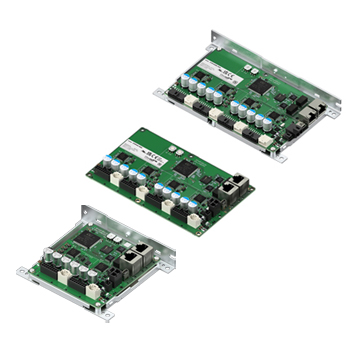

Product Lineup and Application Example

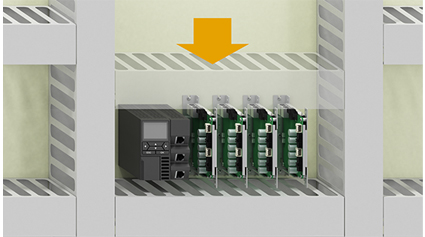

The lineup of 2-axis driver now allows layouts to be fit the equipment space.

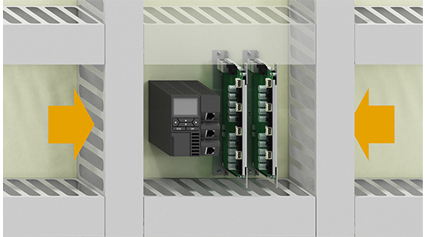

4-Axis Driver

NEW 2-Axis Driver

Example Applications for 2-Axis Driver

XY Stage

Loader/Unloader

Conveyor

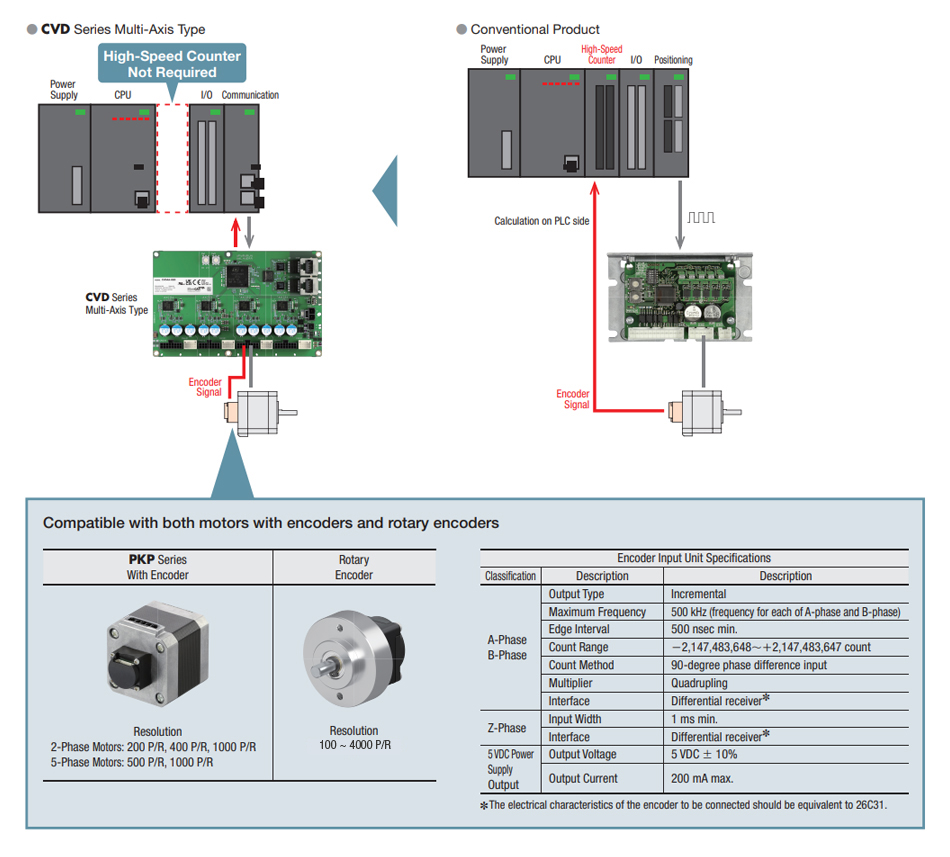

Acquire Encoder Information and Position Deviation Detection

Driver includes a function to acquire encoder information. Position deviation can be detected by the driver and outputs a signal without the need for a host controller. The actual position and speed of the motor can also be monitored on a computer screen by using the support software MEXE02.

No high-speed counter needed, reducing host controller costs
Outputs signal to the host controller using EtherCAT communication. Reduces program creation time.

Acquire Encoder Information and Position Deviation Detection

The Encoder Detection Information can be Monitored Using the Support Software MEXE02 (Free)

Acquire Encoder Information and Position Deviation Detection

Automatic Control of Electromagnetic Brake and Power Supply

No electromagnetic brake control circuit is needed, which reduces program creation time
Reduced wiring work time

Automatic Control of Electromagnetic Brake and Power Supply

Can Provide Power to Sensors

Other Functions

Alarm Output

Output of an excessive position deviation alarm allows for detection of motor misstep/stepout (Main circuit overheat alarm, etc. can also be output)

Information

Output of an excessive position deviation alarm allows for detection of motor misstep/stepout (Main circuit overheat alarm, etc. can also be output)
Can be monitored using EtherCAT communication

Separation of Main Power and Control Power

Other Functions

Supports addition of a separate external safety relay to shut off the main power supply
Monitoring, etc. via EtherCAT communication is possible even when the main power supply is shut off

Main Power Supply Inrush Current Suppression Function

This function protects the circuits in the main power supply unit from inrush currents that occur when the main power supply is turned on.

Support from Startup to Maintenance with the Support Software MEXE02

In addition to setting and editing the operating data and various parameters, teaching and monitoring various operating conditions can be performed using the support software MEXE02.

	Various functions that are useful during wiring checks and test operation are available.
	● Parameter setting ● Status monitor for all axes ●PDO monitor ●Remote operation

Functions to help adjust motor operation after the equipment is installed are available.

● Waveform monitor

● Velocity demand value of motors, etc. can be monitored like an oscilloscope

● Waveform measurement results can be saved as images and in CSV format

	Useful functions for diagnosis and maintenance in case of trouble after the start of operation are available.
	● Alarm monitor ● Unit information monitor ● Status monitor

PKP Series 2-Phase Bipolar Stepper Motors

High-Torque 2-Phase bipolar stepper motors and Spur Gear (SH Type) stepper motors offer the optimum performance and value. In addition to offering high torque, the PKP series stepper motors offer more variety of electrical specifications, more frame sizes, encoder options and electromagnetic brake options for the right solution in stepper motors.

Offers 1.2 ~ 1.7 Time More Torque
1.8° (200 pulse/rev) & 0.9° (400 pulse/rev)
SH Geared (Spur) Type for Inertia Matching & Higher Torque
Bipolar (4 lead wires)
Encoders - 200, 400, or 1000 Lines of Resolution
Electromagnetic Brake Type

PKP Series 5-Phase Stepper Motors

The PKP series stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.

0.72° (500 pulse/rev) & 0.36° (1000 pulse/rev)
New Pentagon Winding
Encoders - 500 or 1000 Lines of Resolution

Rotary Encoders

Small, thin, and lightweight stand-alone rotary encoders that can be installed in tight spaces. Available in IP20 and IP65 rated dust and water resistance.
